CF Lab General-Purpose Underpanel Type 1 Wet Carbon

General Purpose / EXTERIOR & AERO / CF Lab

CF Lab made tuning parts

Model	General Purpose
Category	EXTERIOR & AERO
Brand	CF Lab

￥110,000
+tax

This general-purpose under-panel is the perfect “introductory” under-panel for effectively generating front downforce.

It is highly workable, and the amount of downforce can be adjusted by adding optional parts.

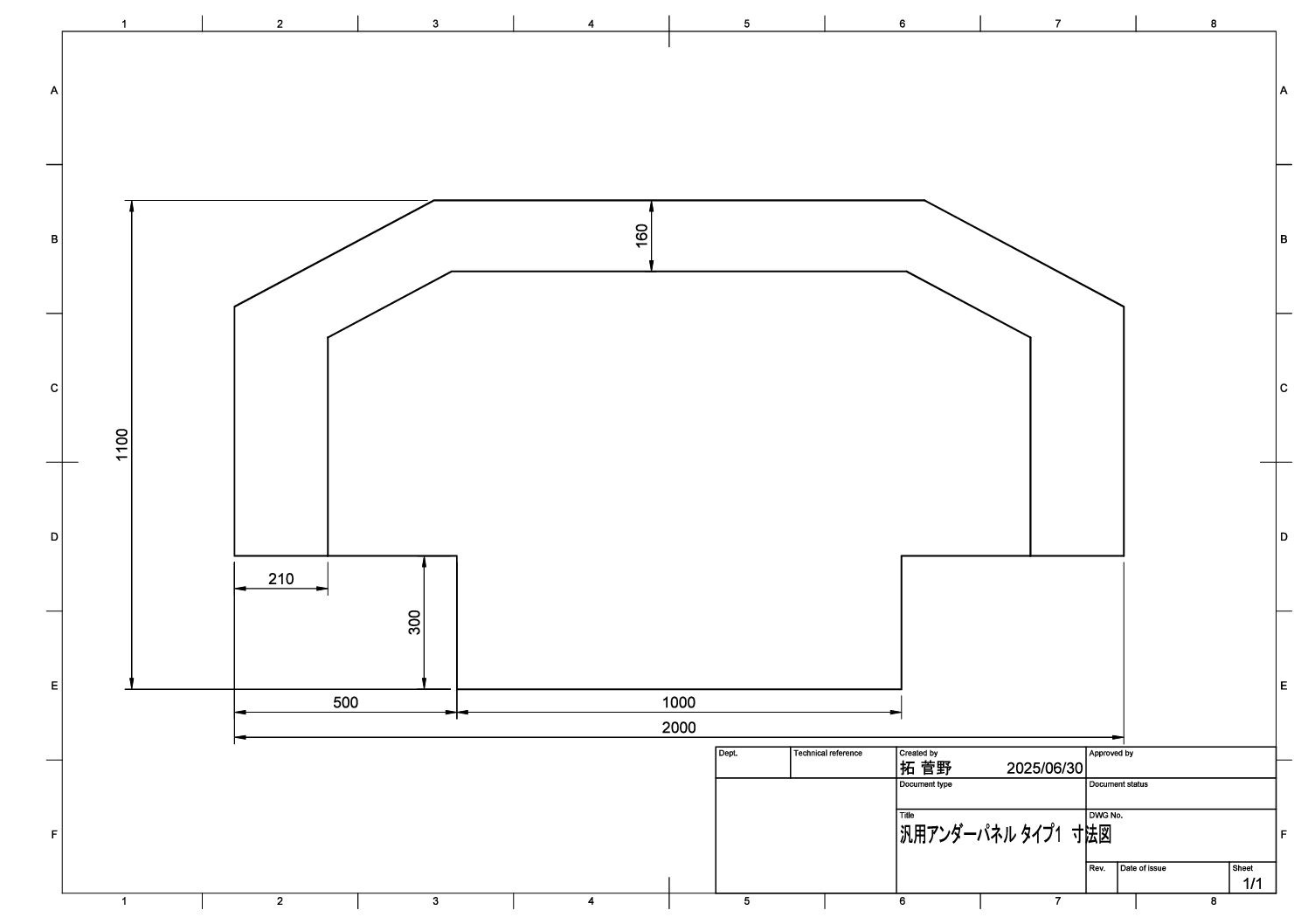

This under-panel is extra-large, measuring 2000 x 1100 mm (t=7mm), but by using wet carbon fiber, it is easy to work with and can be reshaped to suit your vehicle. The carbon fiber on the top surface measures 210mm on the sides and 160mm at the front. It can also be cut to fit sizes such as 1800 x 900.

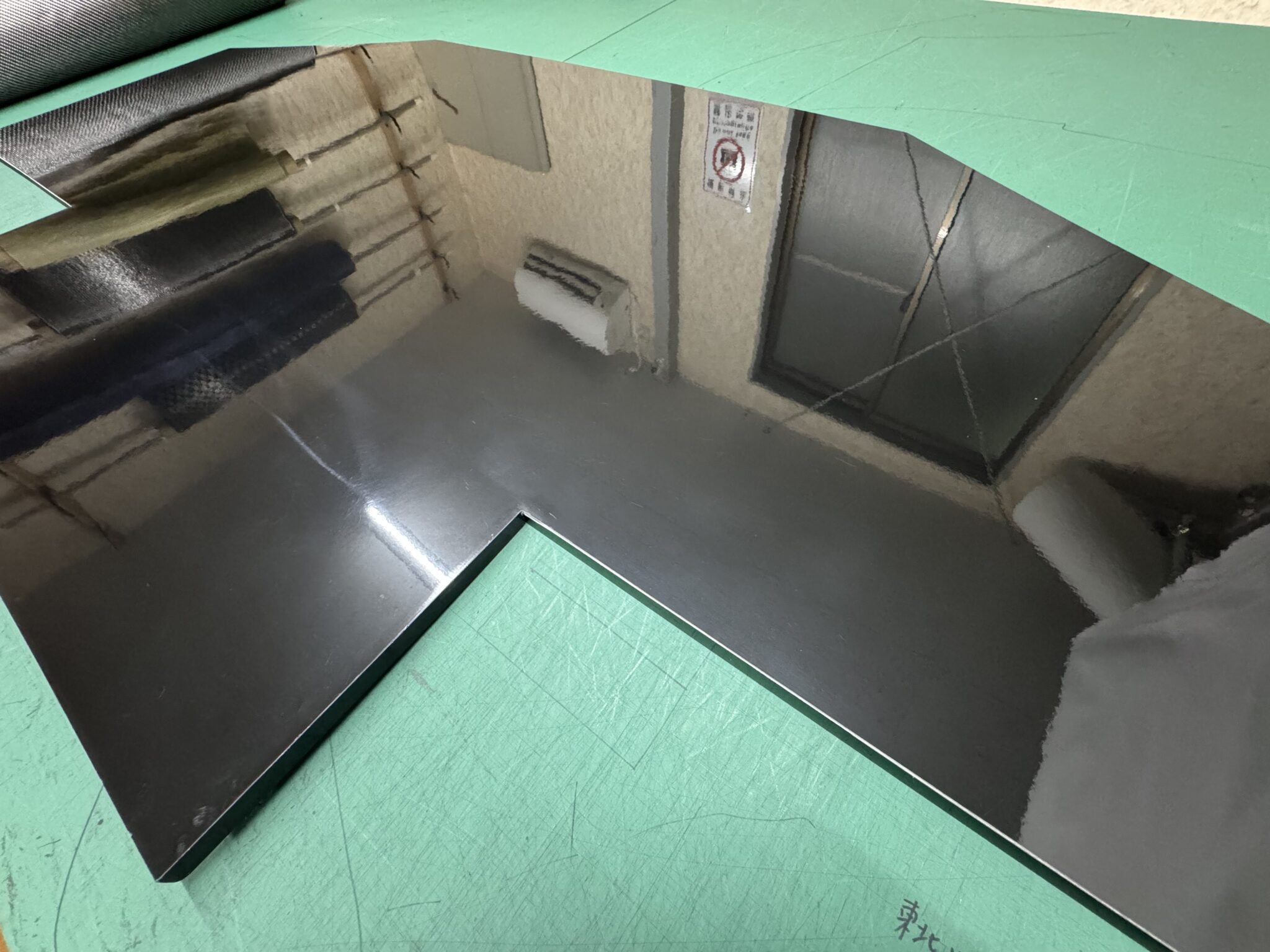

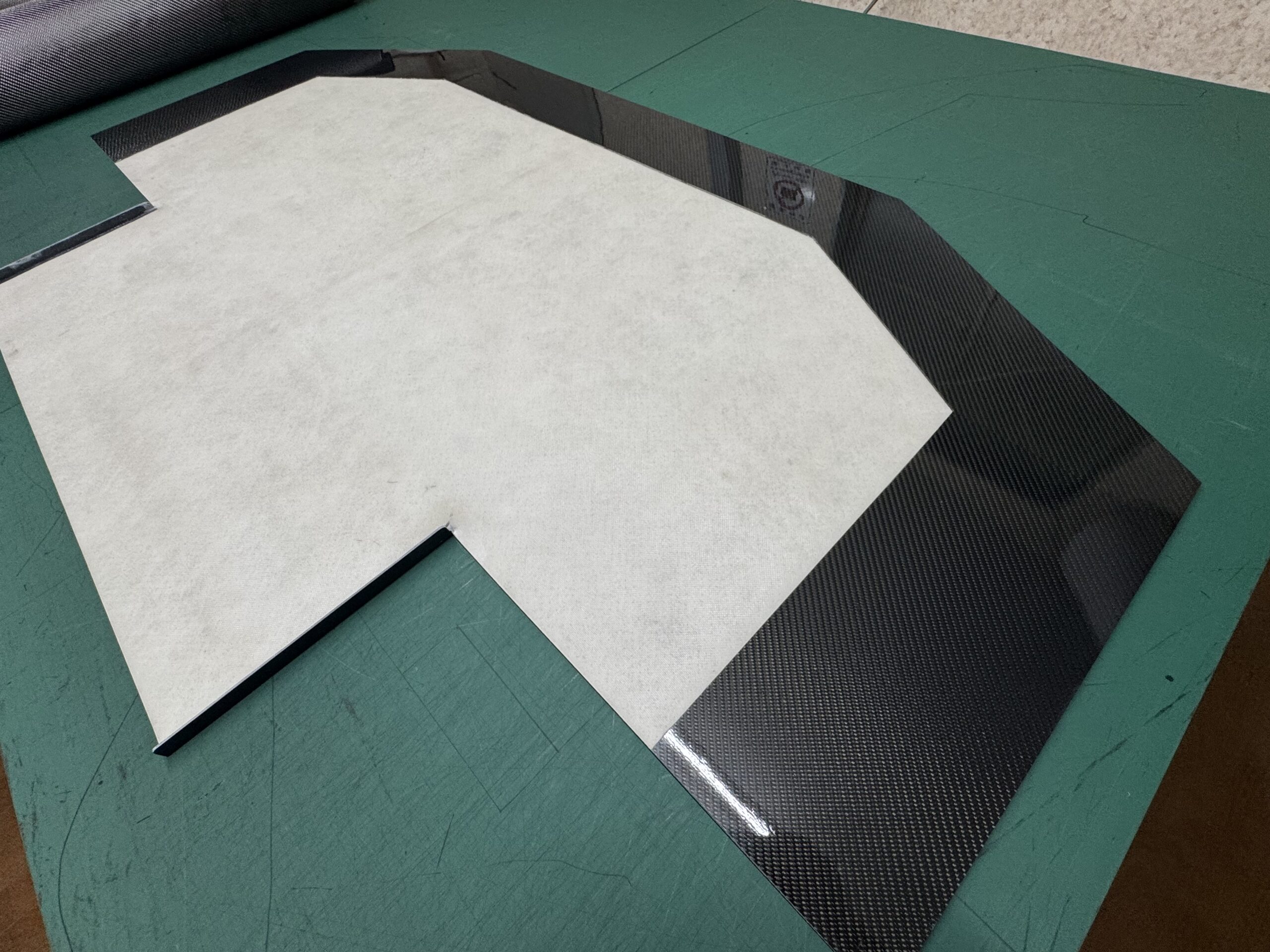

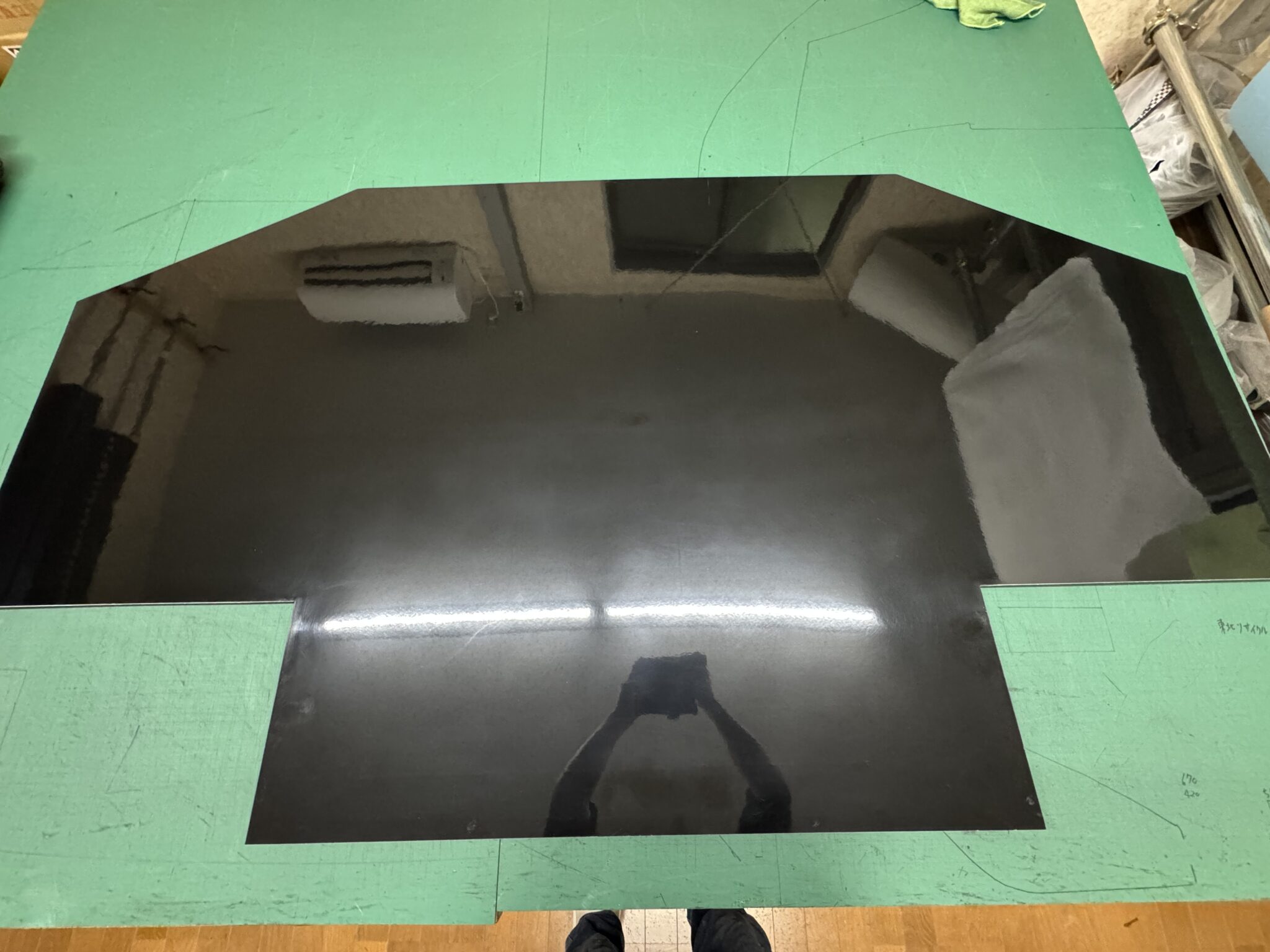

The visible top surface is made of high-quality 3K twill Toray CO6347BL carbon fiber, while the less visible under surface, which is prone to rubbing, is finished in black gel coat, achieving both appearance and cost efficiency.

CF Lab General-Purpose Underpanel Type 1 Wet Carbon

CF Lab made tuning parts
